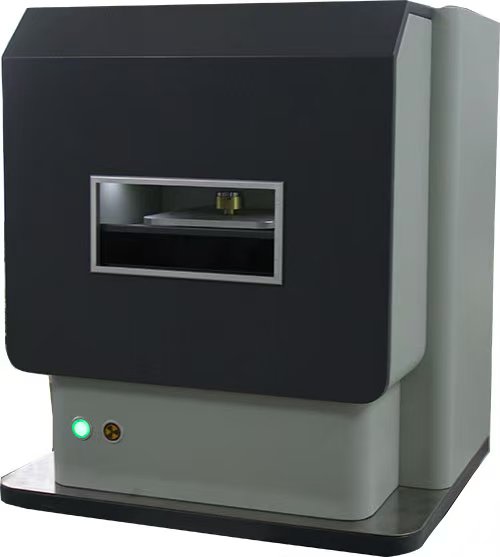

Single Wavelength X-ray Fluorescence Spectrometer
x-Ray
Specification Analysis
Model: MEDX260
Detected Elements: Chlorine (Cl), Sulfur (S)
Detection Limits:
- Chlorine (Cl): ≤ 0.1 mg/kg
- Sulfur (S): ≤ 0.2 mg/kg
Measurable Mass Fraction Ranges (Variable):
- Chlorine (Cl): 0.1 mg/kg – 1.0 %
- Sulfur (S): 0.2 mg/kg – 5.0 %
Spectral Separation Method: Crystal diffraction
X‑ray Optical System: Johansson geometry
Analyzing Crystal: Pyrolytic graphite C(002)
X‑ray Tube: Chromium or palladium anode
Measurement Time: Not less than 8 minutes for duplicate tests on one sample
Application: Suitable for gases or liquids
Analytical Characteristics
- Elements Determined: Cl (Chlorine), S (Sulfur)
- Detection Limit:- Chlorine: ≤ 0.1 mg/kg
- Sulfur: ≤ 0.2 mg/kg
- Measurement Range of Mass Fraction (Variable):- Cl (Chlorine): 0.1 mg/kg ~ 1.0 %
- S (Sulfur): 0.2 mg/kg ~ 5.0 %
- Spectral Separation Method: Crystal diffraction
- X-ray Optical System: Johansson geometry
- Analyzing Crystal: Pyrolytic graphite C(002)
- X-ray Tube: Cr or Pd anode
- Measurement Time for Two Parallel Samples (1 Sample): ≥ 8 minutes
Technical Specifications
- Sample Introduction Device: Side-loading type, 3-position (automatic)
- Sample Cup: Diameter ≤ 32 mm, Volume ≤ 8 cm³, with vent structure
- X-ray Tube Power: Max. 200 W
- Interfaces: Built-in display & thermal printer; USB port for PC connection
Dimensions & Weight (Max.)
- Spectrometer Main Unit: 530×480×340 mm, 40 kg
- Vacuum Pump: 350×250×400 mm, 20 kg
Power Supply
- 220 V, ~50 Hz, 750 W
Standard Delivery List
- Vacuum spectrometer main unit: 1 pc
- Vacuum pump: 1 pc
- Signal indicator light: 1 pc
- Vacuum hose: 1 pc
- USB cable (USB A – USB B): 1 pc
- Keys: 2 pcs
- Uninterruptible power supply (1000 VA): 1 pc
- Software USB flash drive: 1 pc
- Funnel: 1 pc
- Fuse 5A (d5×20): 3 pcs
- Antifreeze (1 kg/bottle): 1 bottle
- Calibration sample set for mass fraction of chlorine and bismuth in mineral oil: 1 set
(including 6 calibration samples:
GO-1 — 600 ml,
GO-2 — 100 ml,
GO-3 — 400 ml,
GO-4 — 100 ml,
GO-5 — 100 ml,
GO-6 — 100 ml) - Organometallic bismuth compound 5000 ppm: 5 bottles (50 g each)
- Disposable Pasteur pipettes: 200 pcs
- PET film (100 m/roll): 5 rolls
- Ventilated sample cups with air holes (100 pcs/pack): 2 packs
- Sulfur standard sample 600 ppm (0.06%): 1 pc
- Rubber suction bulb: 1 pc
- Thermal printer paper, 57 mm (24 m/roll): 5 rolls
- Silicone drain hose 8.0 × 2: 1 pc
- Power filter: 1 pc
- Push rod: 1 pc
- KCl calibration sample: 1 pc
- Entrance slit (with ring): 1 set
- Sample cup removal tool: 1 pc
- Wavelength calibration sample (Range 1): 1 pc
- Wavelength calibration sample (Range 2): 1 pc
- Sample cup holder: 1 pc
No national or transnational standards applicable.
